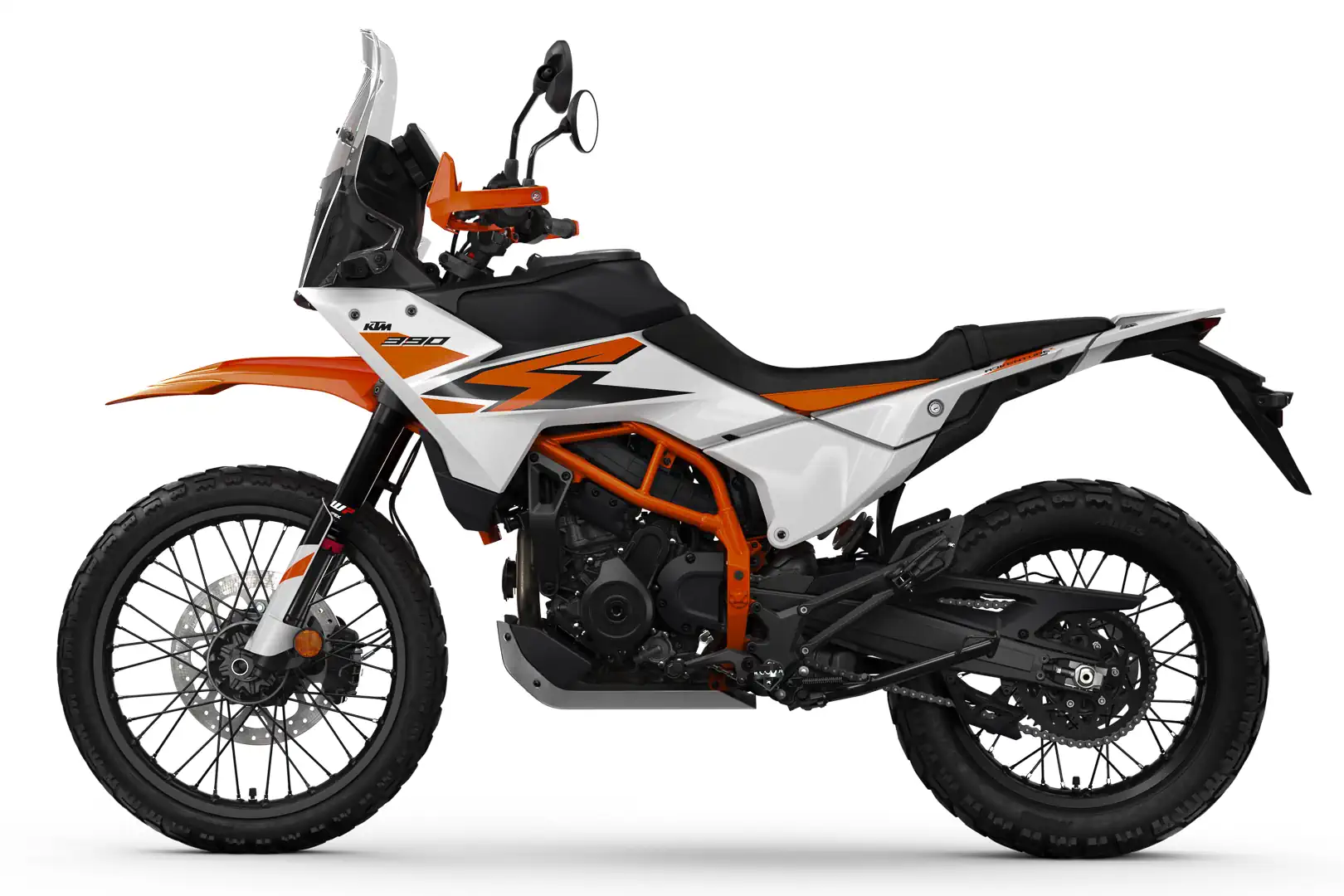

The junior partner in the KTM Adventure R firm is all-new this year. The 2025 KTM 390 Adventure R gets the latest-generation, ride-by-wire 399cc DOHC motor, along with a new chassis. It’s under KTM’s Travel designation, so road performance isn’t forgotten. Let’s check it all out.
- The LC4c comes from the 390 Duke that debuted last year. The single-cylinder powerplant produced 44 horsepower at 8500 rpm, with torque peaking at 29 ft-lbs at 7000 rpm. For a thumper, it does like to rev. Bosch handles the EFI, and the short-stroke combustion chamber is fed by a 46mm throttle body. After an initial oil change at 620 miles, you can go 6200 miles between oil changes.
- There are three ride modes: Street, Off-Road, and Rain. Each adjusts the throttle response and cornering-aware traction control. Riders have the option to disable the traction control, which off-roaders will appreciate.
- The six-speed transmission offers a quickshifter as an option. The clutch features assist and slipper functions, providing a lighter touch at the lever and reducing drama during hard downshifts. Power is sent to the rear wheel via a 520 X-ring chain.
- The 390 Adventure R has a 3.7-gallon fuel tank and is estimated to consume 69 mpg. That works out to a range of over 250 miles.
- The steel trellis frame is based on the frame used by all the 390s. However, the 2025 KTM 390 Adventure R gets its own steering head angle, triple clamps, rigidity profile, and mounts for the rear subframe. The Adventure R’s gravity die-cast aluminum swingarm is shared with the 390 Enduro R dual-sport bike and 390 SMC R supermoto. The curb weight is 385 pounds, which is light for an ADV bike.
- WP Apex suspension is used at both ends. While the spring-preload is fixed on the open-cartridge fork, the compression and rebound damping are 30-click adjustable. The cantilevered shock has spring-preload adjustability and 20 clicks of rebound adjustment.
- With a 21-/18-inch wheelset, the 2025 KTM 390 Adventure R is ready for off-road travel. The tube-type Mitas Enduro Trail E07+ tires have a slight 60/40 road bias.
- ByBre calipers slow the 390 Adventure R down. The front 320mm disc is ready for high-speed pavement. The rear is a 240mm disc. Two-channel Bosch 9.3MP ABS controls skidding during braking, with an Offroad mode available that disables the rear ABS.
- An adventure fairing with a substantial windshield protects the rider from the wind blast. All lighting on the bike is LED. The handlebar is tapered aluminum, and handguards are standard.
- A five-inch TFT dash and new switchgear help the rider manage the electronics suite. You can pair your smartphone and helmet intercom to the 390 Adventure R for turn-by-turn navigation, answering phone calls, and listening to music.
- The 2025 KTM 390 Adventure R has a price tag of $6999. If you want to spend more, the KTM PowerParts catalog gives you plenty of opportunities, as shown in the location photos.
We tested the KTM 390 Adventure in 2023
2025 KTM 390 Adventure R First Look
ENGINE
- Type: LC4c single cylinder
- Displacement: 399cc
- Bore x stroke: 89 x 64mm
- Maximum power: 44 horsepower @ 8500 rpm
- Maximum torque: 29 ft-lbs @ 7000 rpm
- Compression ratio: 12.6:1
- Valvetrain: DOHC; 4 valves
- Fueling: Bosch EFI w/ 46mm throttle body
- Lubrication: Wet sump
- Cooling: Liquid
- Transmission: 6-speed (quickshifter optional)
- Clutch: Wet multiplate w/ assist and slipper functions
- Final drive: 520 X-ring chain
CHASSIS
- Frame: Powdercoated steel trellis w/ bolt-on subframe
- Swingarm: Cast aluminum
- Handlebars: Tapered aluminum
- Front suspension; travel: Damping-adjustable WP Apex inverted 43mm open-cartridge fork; 9.1 inches
- Rear suspension; travel: Cantilevered rebound-damping and spring-preload adjustable WP Apex separate-piston shock; 9.1 inches
- Wheels: Wire-spoke w/ tube-style aluminum rims
- Front: 21 x 1.85
- Rear: 18 x 2.50
- Tires: Mitas Enduro Trail E07+
- Front: 90/90-21
- Rear: 140/80-18
- Front brake: 320mm disc w/ ByBre 2-piston caliper
- Rear brake: 240mm disc w/ ByBre single-piston caliper
- ABS: Bosch 9.3MP w/ Offroad mode
DIMENSIONS and CAPACITIES
- Wheelbase: 58.3 inches
- Seat height: 34.3 inches
- Fuel capacity: 3.7 gallons
- Estimated fuel consumption: 69 mpg
- Curb weight: 385 pounds
2025 KTM 390 Adventure R Price: $6999 MSRP
